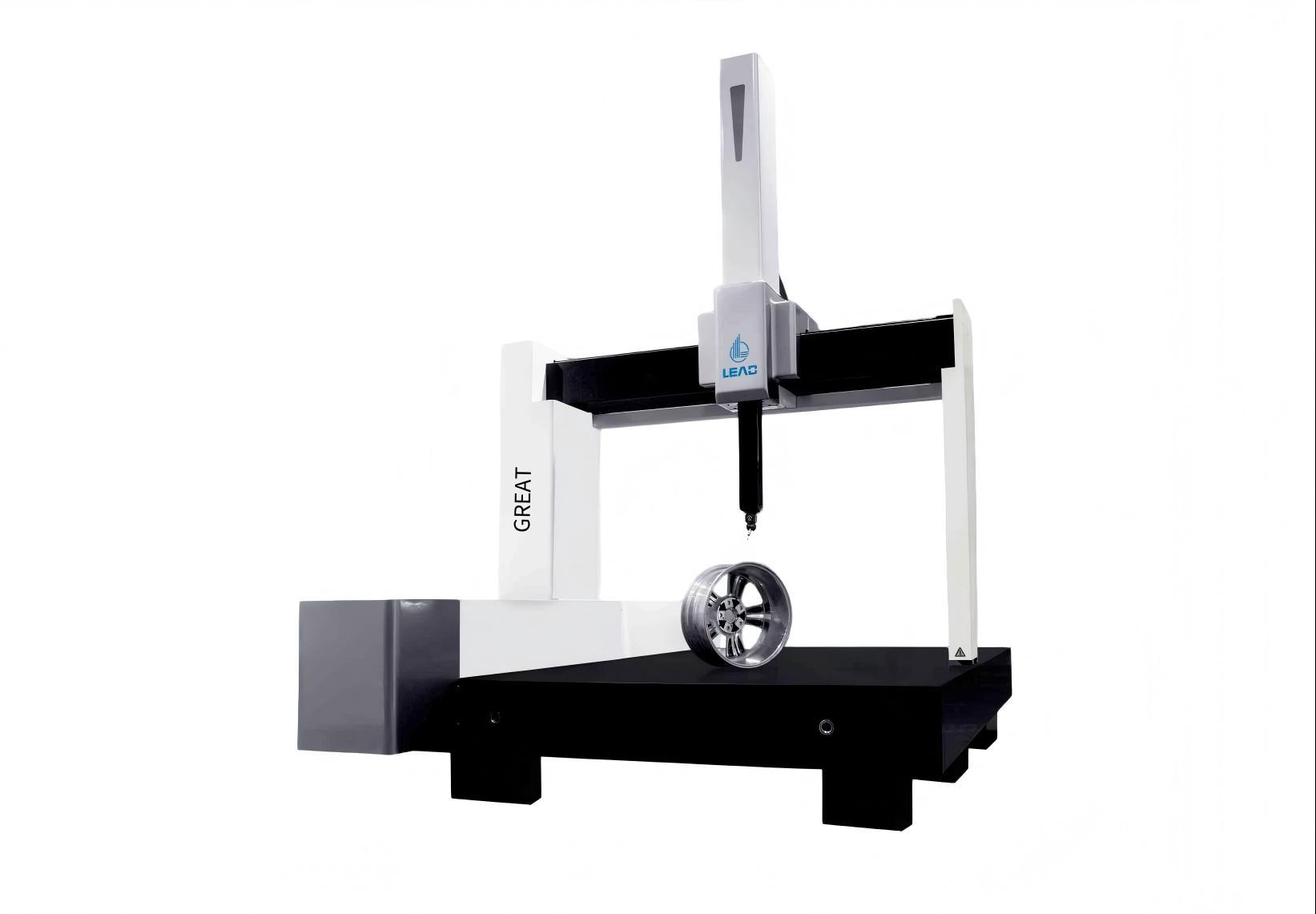

GREAT Series

Large-range Moving Bridge CMMs

GREAT series is specially designed for the of wide-range workpiece inspection,and its unilateral elevated structure has high dynamics and stability,thus comprehensively meeting the requirements of measurement and quality verification from automobile manufacturing,large mold and precision spare parts.

Inquiry
sales@leadmetrology.com
  • Product Features
  • Model & Technical Parameters
  • Case Studies
    • Commodity name: Large-range Moving Bridge CMMs
    • 系列名: GREAT Series

    GREAT series is specially designed for the of wide-range workpiece inspection,and its unilateral elevated structure has high dynamics and stability,thus comprehensively meeting the requirements of measurement and quality verification from automobile manufacturing,large mold and precision spare parts.

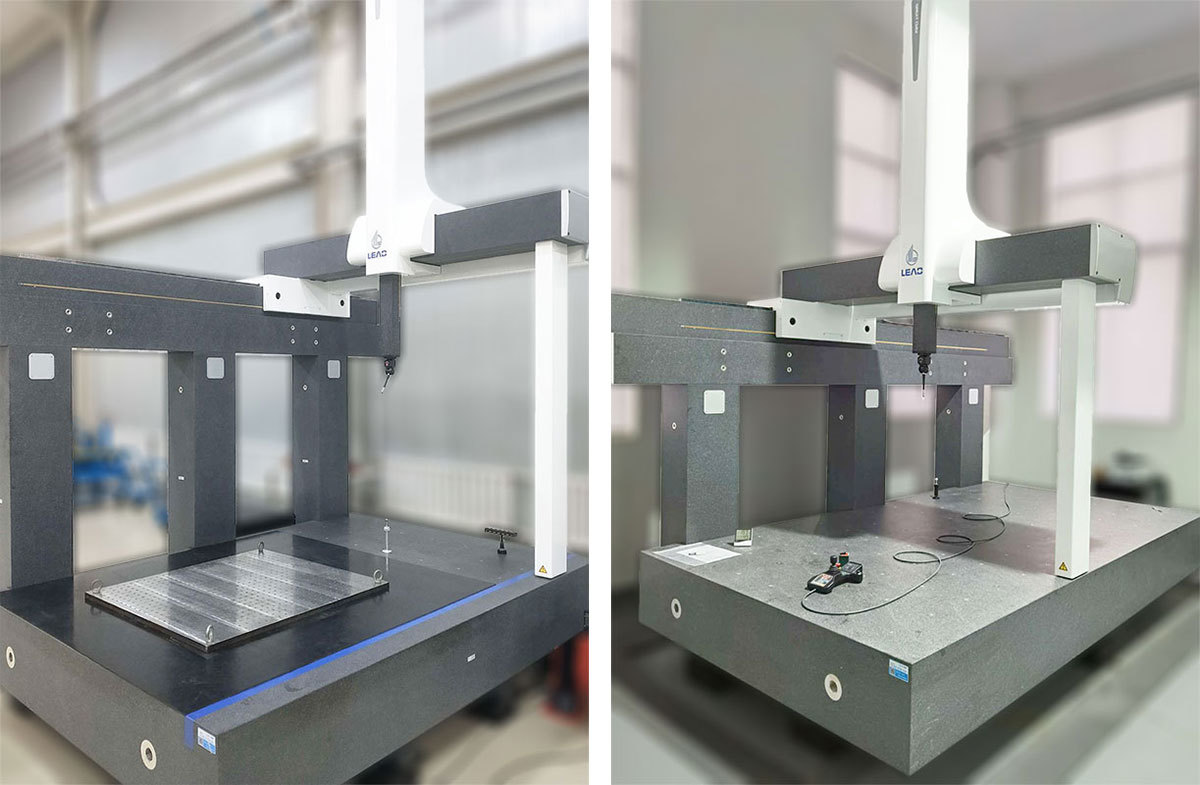

    Main feature

    The integral granite workbench make the machine characterized with the good rigidity，strong bearing capacity，wide workpiece placing space and convenient loading and unloading;The main guide rail is designed to be longer to increase the span of guiding air bearing，and substantially improve the guiding precision of the main guide rail;The longest axis use high precision tooth-shape driving，which guarantee rather good transmission rigidity;the rest 2 axis adopt high performance synchronous belts，which is not only to get rather fast motion velocity to increase measuring efficiency，but also to reduce transmission inertia to the uttermost to improve the motion acceleration;
    The elevated structural style is adopted by the Y-direction main guide rail，so that the inertia of the moving parts is reduced，the transmission parts are closer to the center of inertia，and even if the measuring machine with big specification is provided，its good motion characteristics and precision stability can also be guaranteed;Z-axis adopts the adjustable pneumatic balance device，which can adjust the counterbalance with facility although equipped with different probe systems，so that it can reach the best state.



    Key words:
    • specially
    • designed

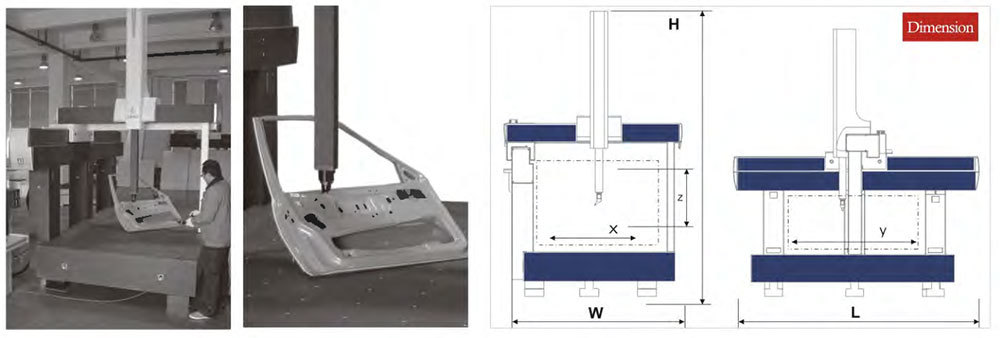

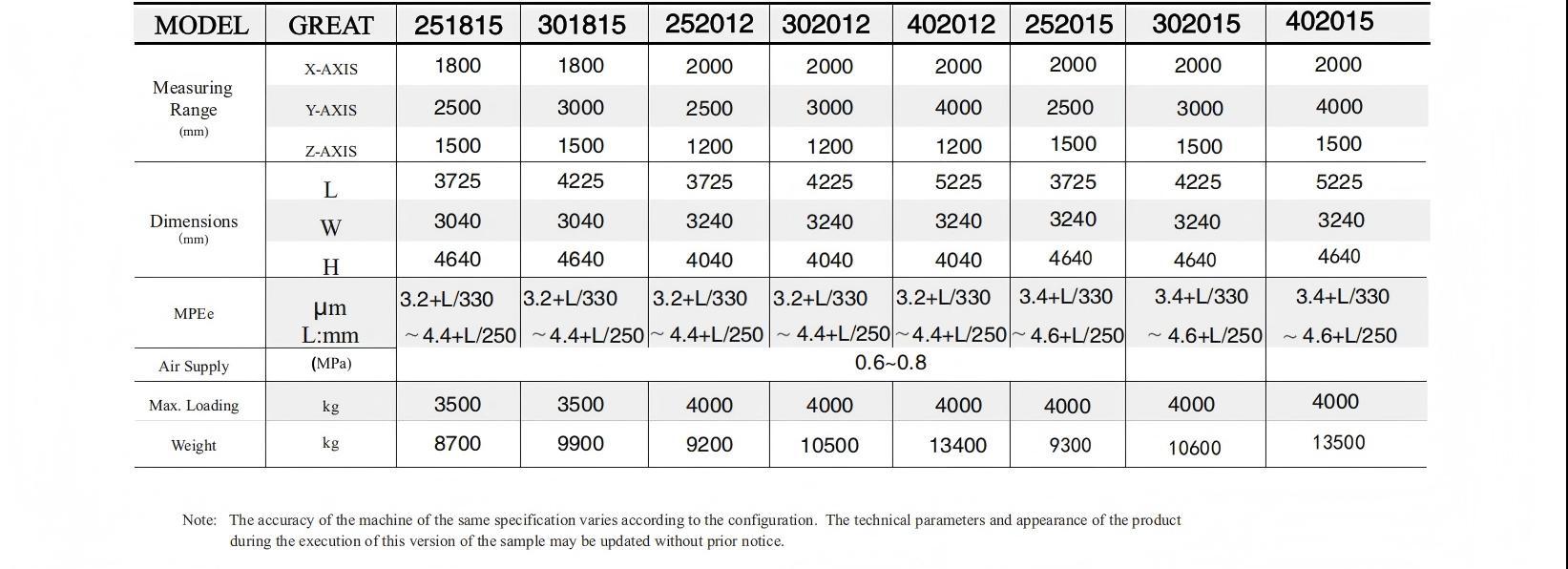

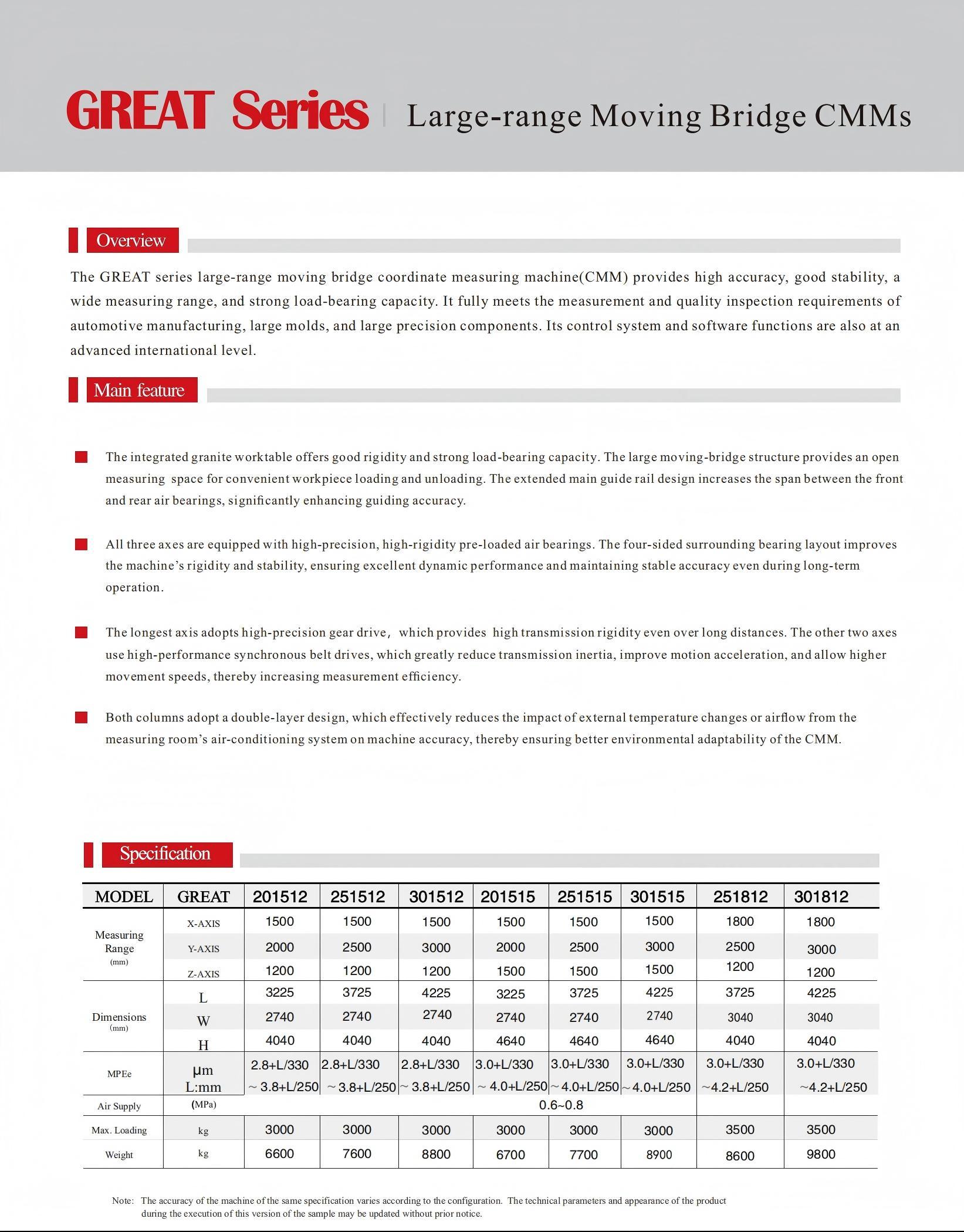

  • Specification



    Model
    X
    Y
    Z
    MPEE(μm:mm）
    MPEP（μm）
    Overall Size
    Machine Weight
    Max. Loading
    mm
    mm
    mm
    L(mm)
    W(mm)
    H(mm)
    kg
    kg
    GREAT201512
    1500
    2000
    1200
    2.8+L/330~3.8+L/250
    3.9~2.8
    3225
    2740
    4040
    6600
    3000
    GREAT251512
    1500
    2500
    1200
    2.8+L/330~3.8+L/250
    3.9~2.8
    3725
    2740
    4040
    		76003000
    GREAT301512
    1500
    3000
    1200
    2.8+L/330~3.8+L/250
    3.9~2.8
    4225
    2740
    4040
    8800
    3000
    GREAT201515
    1500
    2000
    1500
    3.0+L/330~4.0+L/250
    4.1~3.0
    3225
    2740
    4640
    6700
    3000
    GREAT251515
    1500
    2500
    1500
    3.0+L/330~4.0+L/250
    4.1~3.0
    3725
    2740
    4640
    7700
    3000
    GREAT301515
    1500
    3000
    1500
    3.0+L/330~4.0+L/250
    4.1~3.0
    4225
    2740
    4640
    8900
    3000
    GREAT251812
    1800
    		2500
    1200
    3.0+L/330~4.2+L/250
    4.3~3.0
    3725
    3040
    4040
    8600
    3500
    GREAT301812
    		18003000
    1200
    		3.0+L/330~4.2+L/250
    4.3~3.0
    4225
    3040
    4040
    		98003500
    GREAT251815
    		18002500
    1500
    3.2+L/330~4.4+L/250
    4.5~3.2
    3725
    3040
    4640
    8700
    3500
    GREAT301815
    		18003000
    1500
    		3.2+L/330~4.4+L/250
    4.5~3.2
    4225
    3040
    4640
    9900
    3500
    GREAT252012
    		2000
    2500
    1200
    		3.2+L/330~4.4+L/250
    4.5~3.2
    3725
    3240
    4040
    9200
    4000
    GREAT302012
    2000
    3000
    1200
    		3.2+L/330~4.4+L/250
    4.5~3.2
    4225
    3240
    4040
    10500
    4000
    GREAT4020122000400012003.2+L/330~4.4+L/250     4.5~3.2  5225  3240  4040         13400          4000
    GREAT252015
    		20002500
    1500
    3.4+L/330~4.6+L/250
    4.7~3.4
    3725
    3240
    4640
    9300
    4000
    GREAT302015
    		20003000
    1500
    		3.4+L/330~4.6+L/250
    4.7~3.4
    4225
    3240
    4640
    		106004000
    GREAT402015
    		2000
    4000
    1500
    		3.4+L/330~4.6+L/250
    4.7~3.4
    5225
    3240
    4640
    13500
    4000



    Note:The accuracy of the machine of the same specification caries according to the configuration.The technical parameters and appearance of the product during the execution of this version of the sample may be updated without prior notice.
