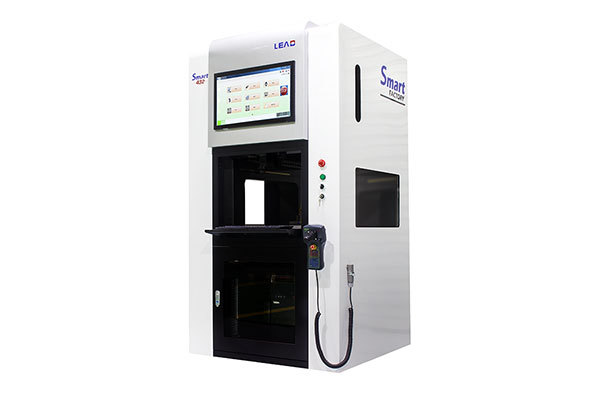

new coordinate measuring machine

A coordinate measuring machine is an advanced inspection system designed to deliver precise 3D measurements of workpieces and components. This technology plays a crucial role in dimensional metrology by capturing accurate spatial coordinates of an object’s surface, ensuring it aligns with CAD models or engineering drawings. The coordinate measuring machine is vital in detecting manufacturing deviations early in the production process.

Main feature

■ Wide temperature range，can be used in 10℃~40℃environment.

■ Ultra-high speed measurement and acceleration ability is 3 times of ordinary CMM.

■ Turn on and use，no isothermal process is required.

■ Dustproof design，can be used in the production workshop.

■ No air source design，do not need compressed air，power can be used.

■ Support automatic interface to realize intelligent online measurement.

■ Four-way feeding，convenient in automatic production line layout.

■ The integrated design of the whole machine takes up little space and saves precious production line space.

■ Easy to move，use forklift can be easily moved to any position.

■ Simple operation，support drag-and-drop operation，support the workshop special software interface.

coordinate measuring machine

A coordinate measuring machine is an advanced inspection system designed to deliver precise 3D measurements of workpieces and components. This technology plays a crucial role in dimensional metrology by capturing accurate spatial coordinates of an object’s surface, ensuring it aligns with CAD models or engineering drawings. The coordinate measuring machine is vital in detecting manufacturing deviations early in the production process.

Equipped with high-resolution sensors and stable mechanical structures, the coordinate measuring machine offers exceptional measurement repeatability. It supports a range of probes—including tactile, optical, and laser—for versatility across different materials and surface finishes. Its automated functionality enhances throughput and reduces inspection time without sacrificing accuracy.

The integrated software of the coordinate measuring machine allows users to generate real-time data, statistical reports, and full 3D part inspections. With a user-friendly interface and programmable routines, it simplifies operation while maintaining high standards of measurement fidelity.

Ideal for high-precision industries, the coordinate measuring machine ensures quality compliance, boosts productivity, and reduces waste by delivering consistent and reliable measurement performance throughout the manufacturing cycle.
